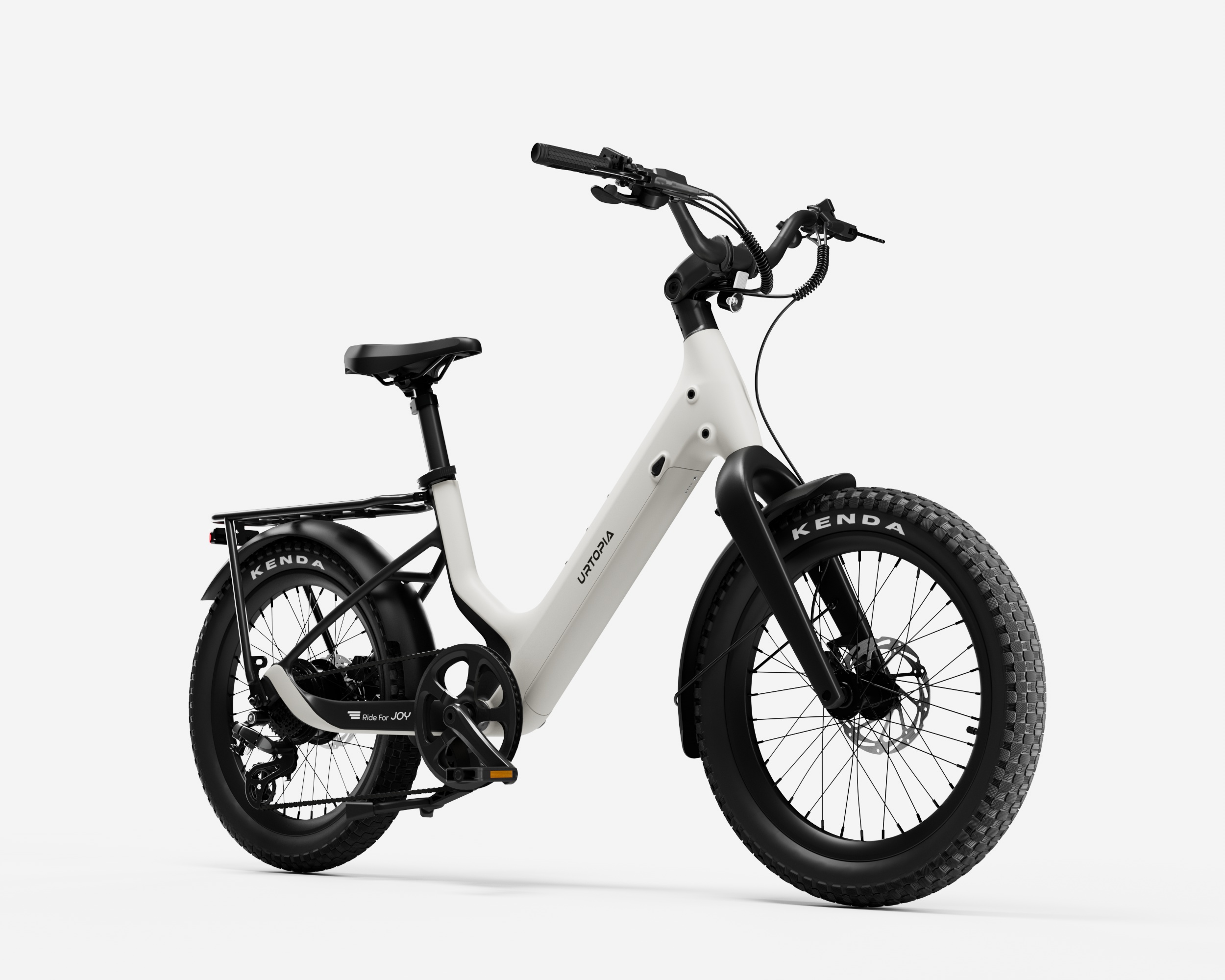

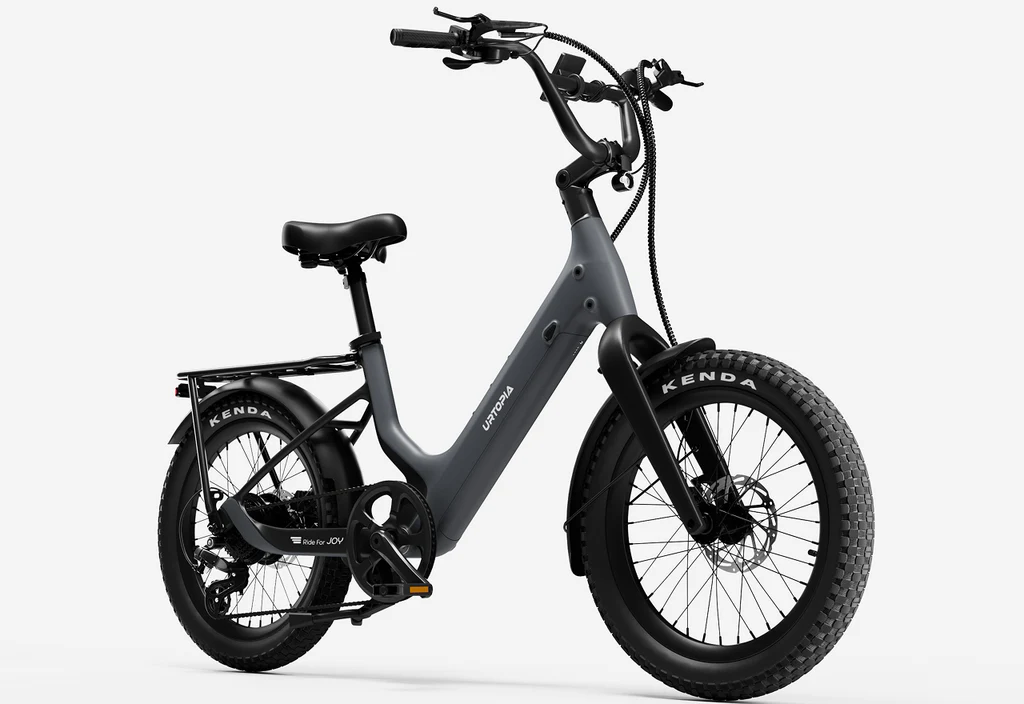

specification-img

Joy Ultra Specifications

Description

The Joy Ultra: .

The Carbon Joy Ultra electric cruiser bike is 50% lighter than aluminum while ensuring exceptional strength and durability. Its flowing ribbon-inspired chainstays evoke motion, while the seat-tube-free frame is designed to turn heads and stand out.
Electronics
  • MOTOR

    Customized rear hub motor, 500W 36V 50N·m.

    .

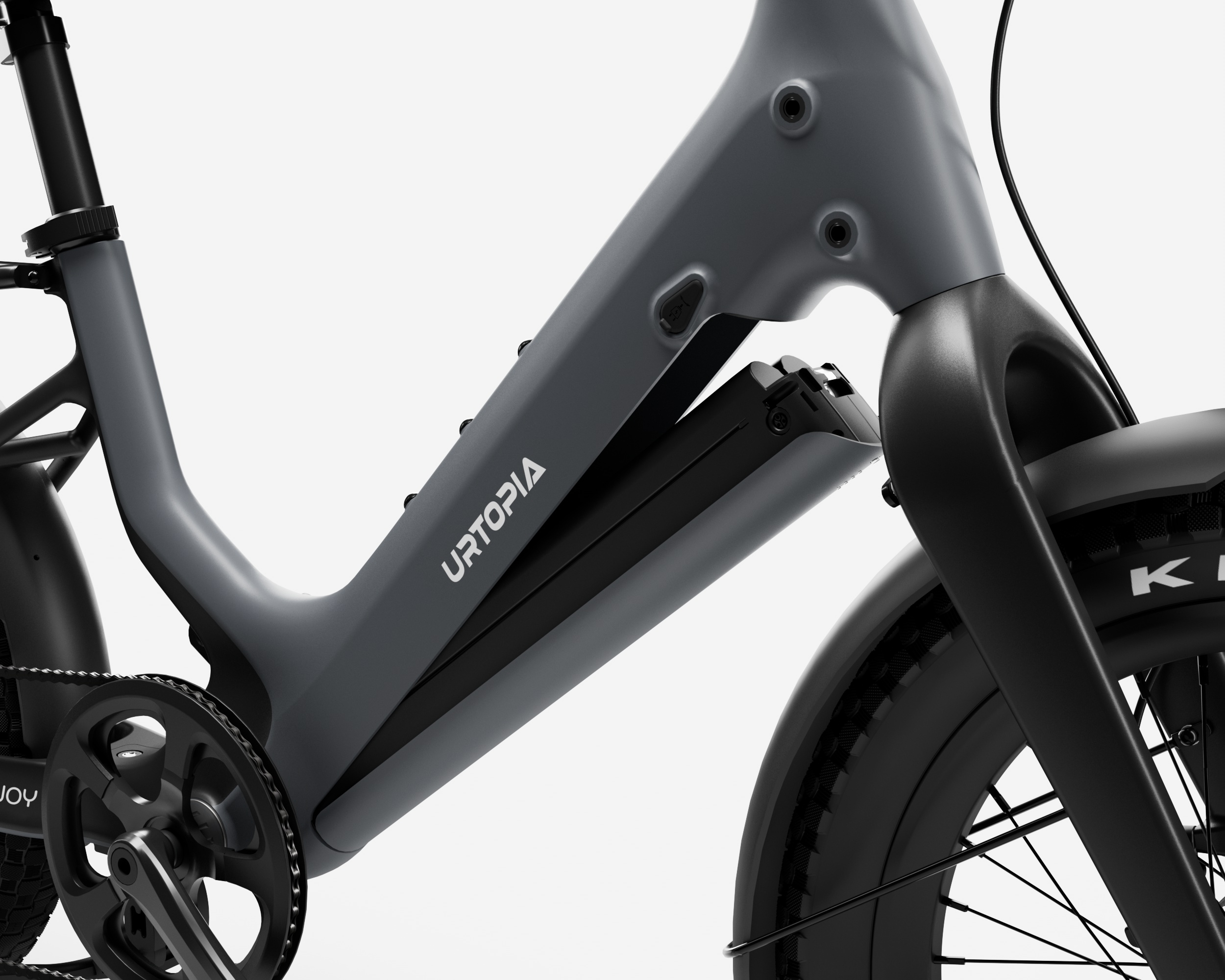

  • BATTERY

    529.2Wh 36V/14.7Ah, Samsung Li-ion, UL2271 certified, removable battery

  • CONTROLLER

    Torque Sensor

  • THROTTLE

    Included

  • Pedal Assist

    4-level pedal assist (Eco, Tour, Boost, Turbo)

  • TOP SPEED

    32 KM/H WITH MOTOR ASSISTANCE ONLY

  • DISPLAY

    2.0" color LCD display

Drivetrain
  • DERAILLEUR

    Shimano Altus RD-M310-Smart rear derailleur.

  • BOTTOM BRACKET

    Torque Assist

  • CHAIN

    Shimano Altus 8-Speed chain

Brakes

TEKTRO HD-E3520 hydraulic disc brake with power cut-off sensor

Components
  • FRAME

    Toray® Carbon Fiber

    .
  • FORK

    Toray® Carbon Fiber

  • HANDLEBAR

    Aluminum, extender 0-60° adjustable

  • TIRES

    Kenda K905 20"x3.0"

Extras
  • BELL

    Included

  • KICKSTAND

    Double Kickstand

  • FENDERS

    Included

  • LIGHTS

    Headlights External front light, 30 Lux/95LM; Rear lights External tail light w/ brake sensing, rear rack mounted

  • REAR RACK

    MIK HD rear rack (100lbs),

  • FRONT RACK

    Front rack (33lbs) Frame Mounted Optional

Weight

46 lbs w/ battery; 39 lbs w/o battery; Weight limit 330 lbs

DOWNLOAD FACT SHEET

*Specifications subject to change without notice and not guaranteed. Please note that some colours or components may vary from what is displayed on our website or spec sheet.

EMAIL FOR INFO

KEY FEATURES

Toray® Carbon Fiber

Both Frame and Fork

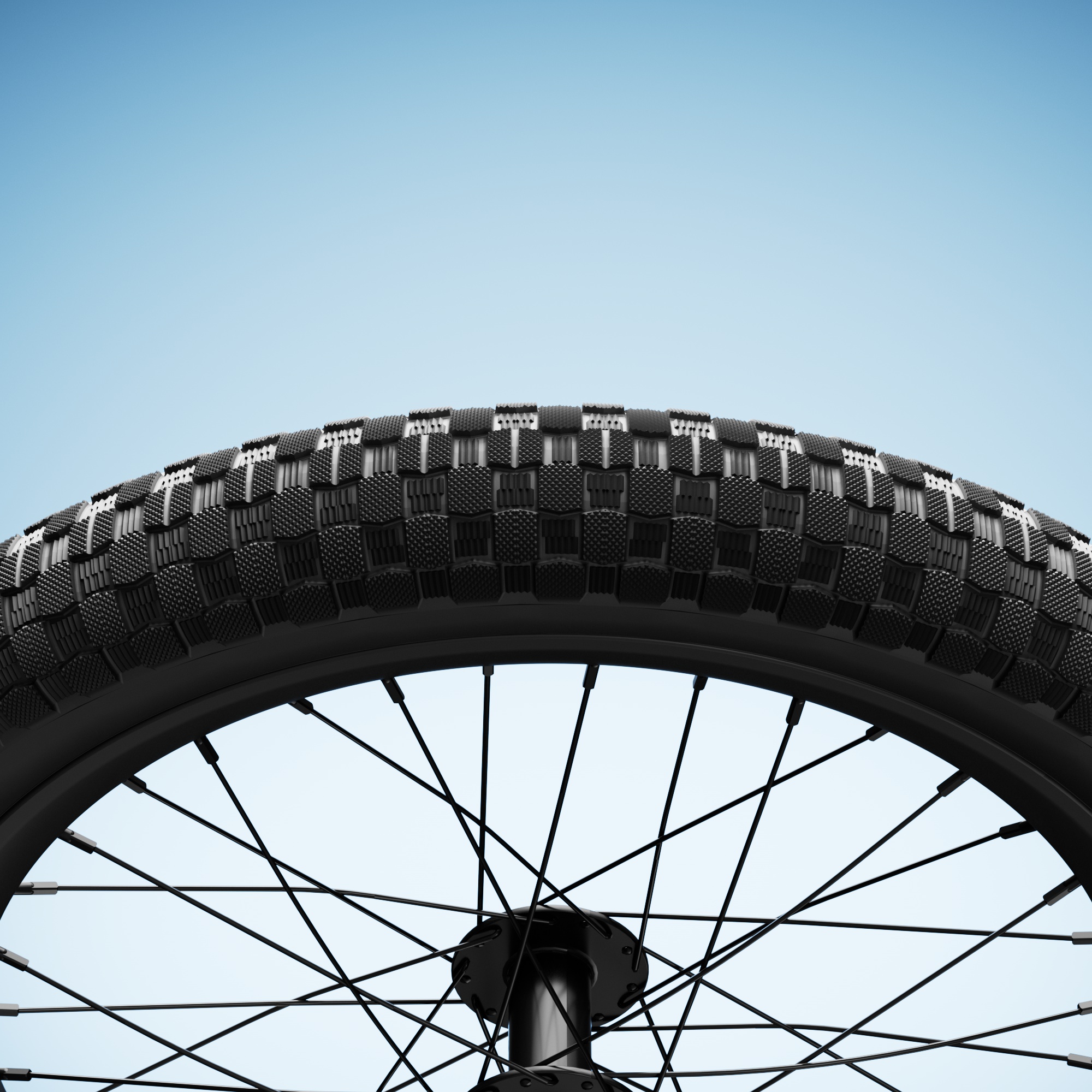

Wide Tire

20" x 3" Hybrid

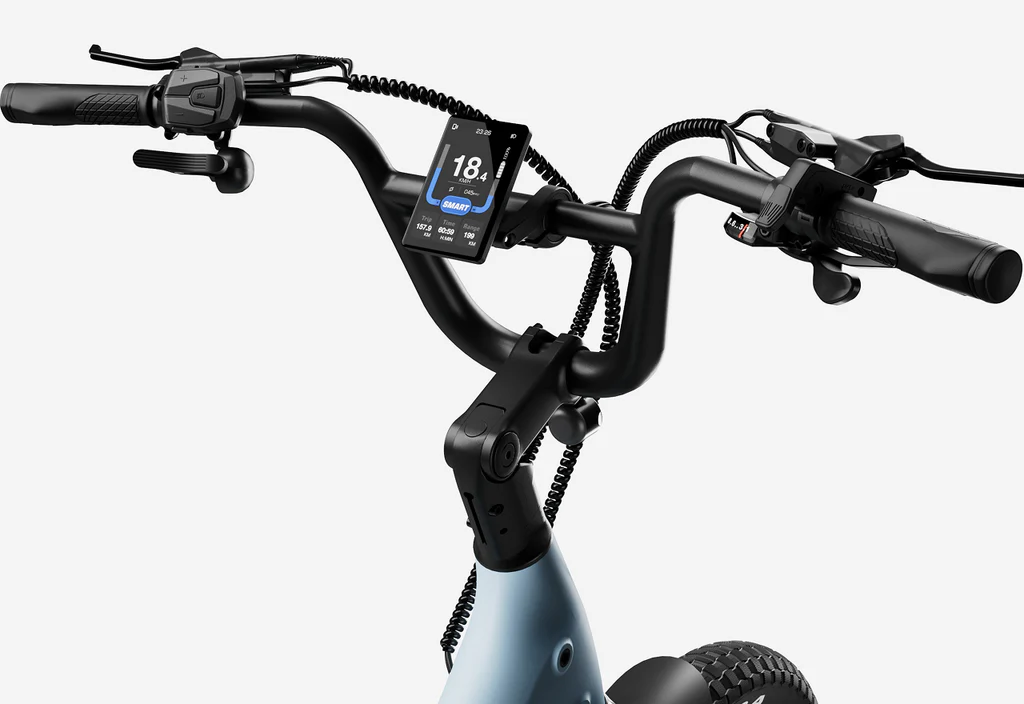

Adjustable Handlebar

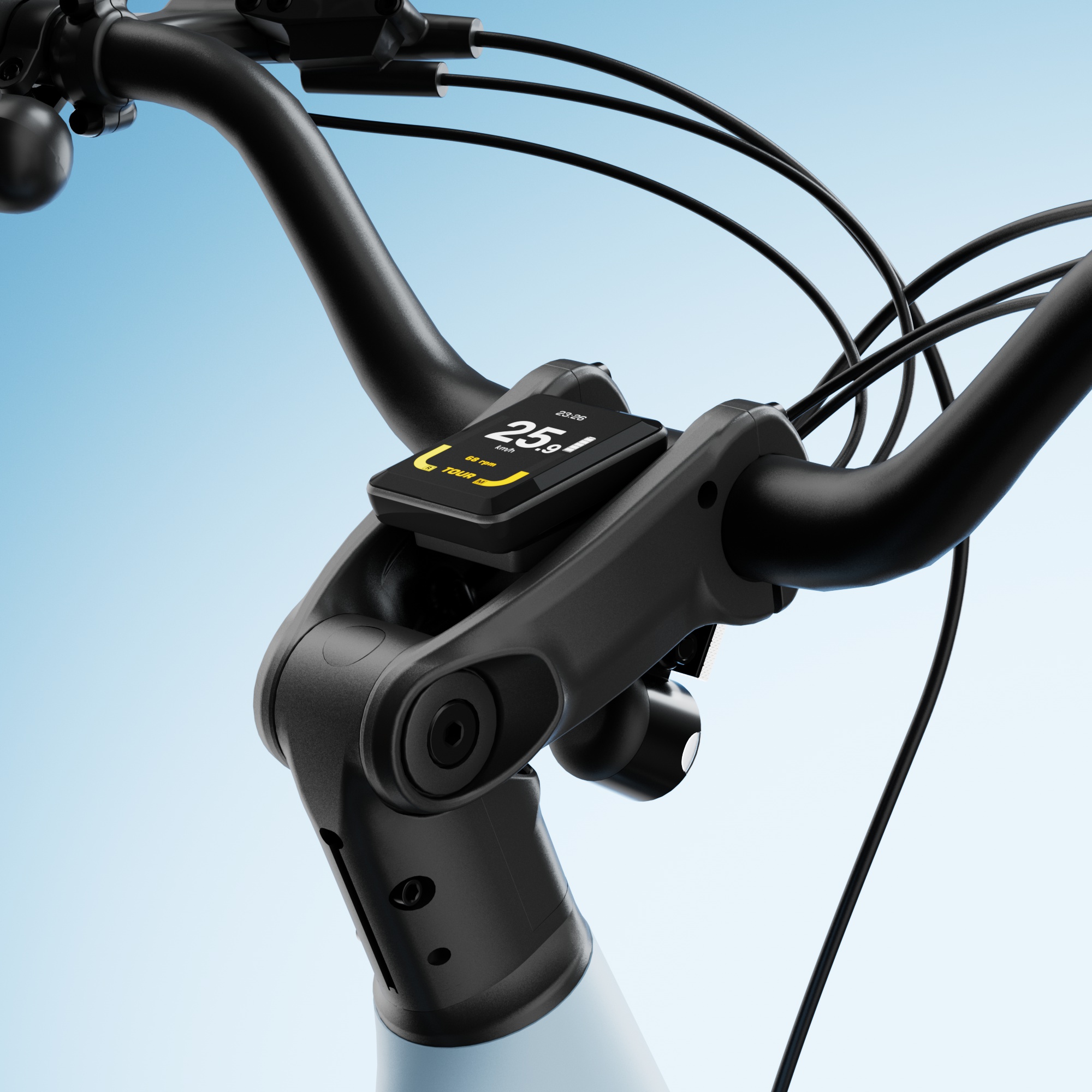

Built-in Color LCD Display

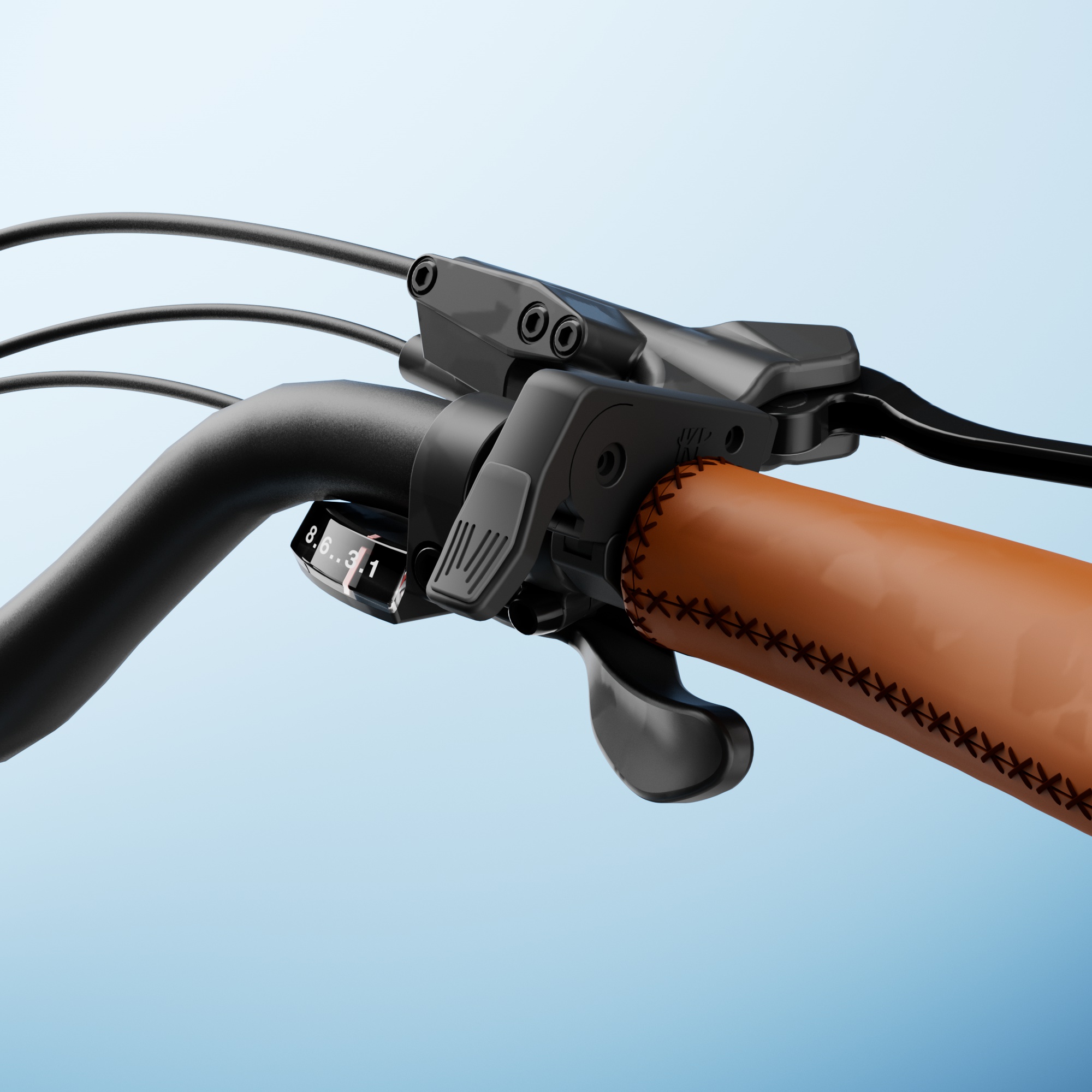

Full Throttle

and Pedal Assist

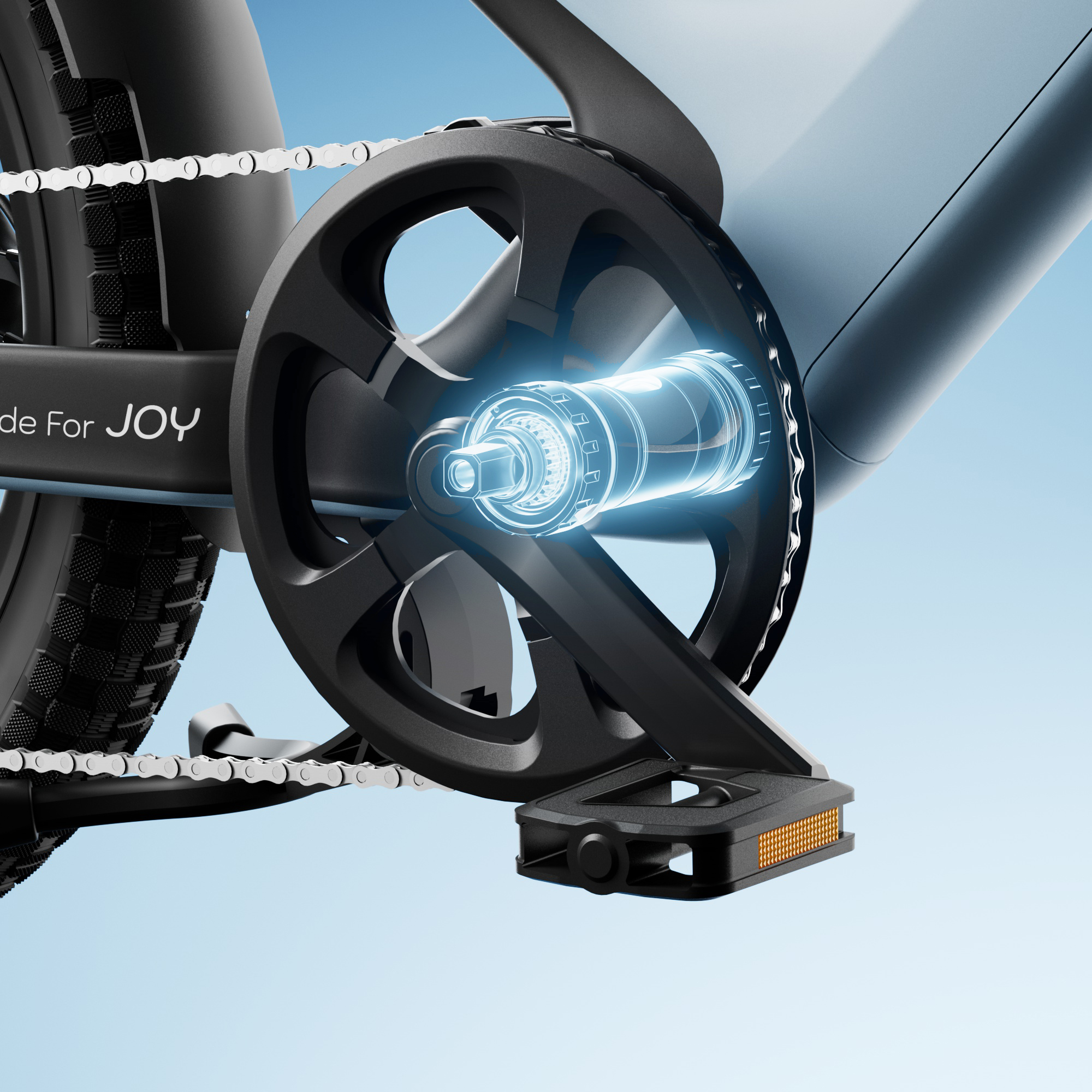

Torque Sensor

Ultra-Smooth Riding

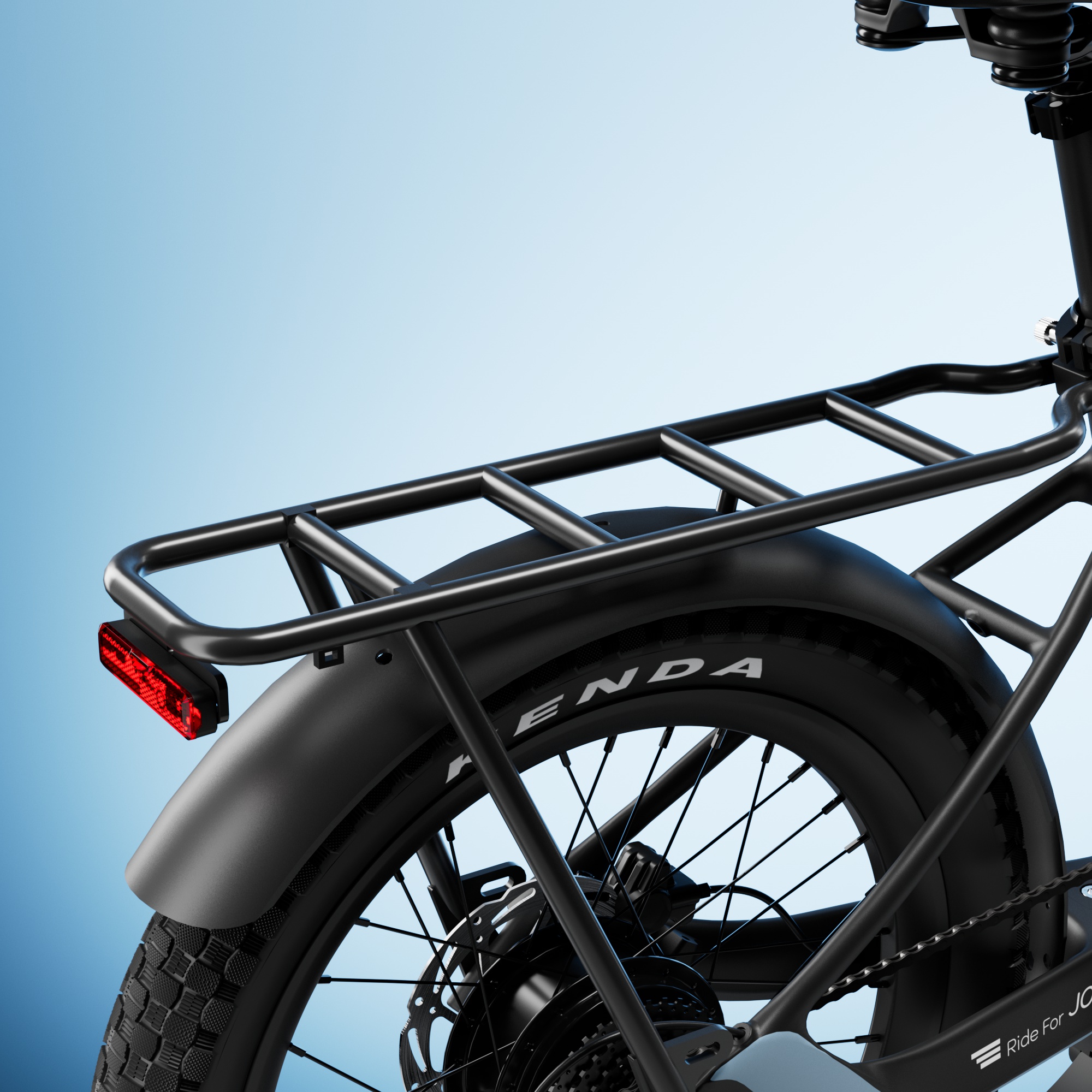

MIK HD Rear Rack

w/ Brake Sensing Rear Light
