ELEMENT PRO
The ultimate value electric bike
5-Year Pedego Care Warranty
Premium quality & local service

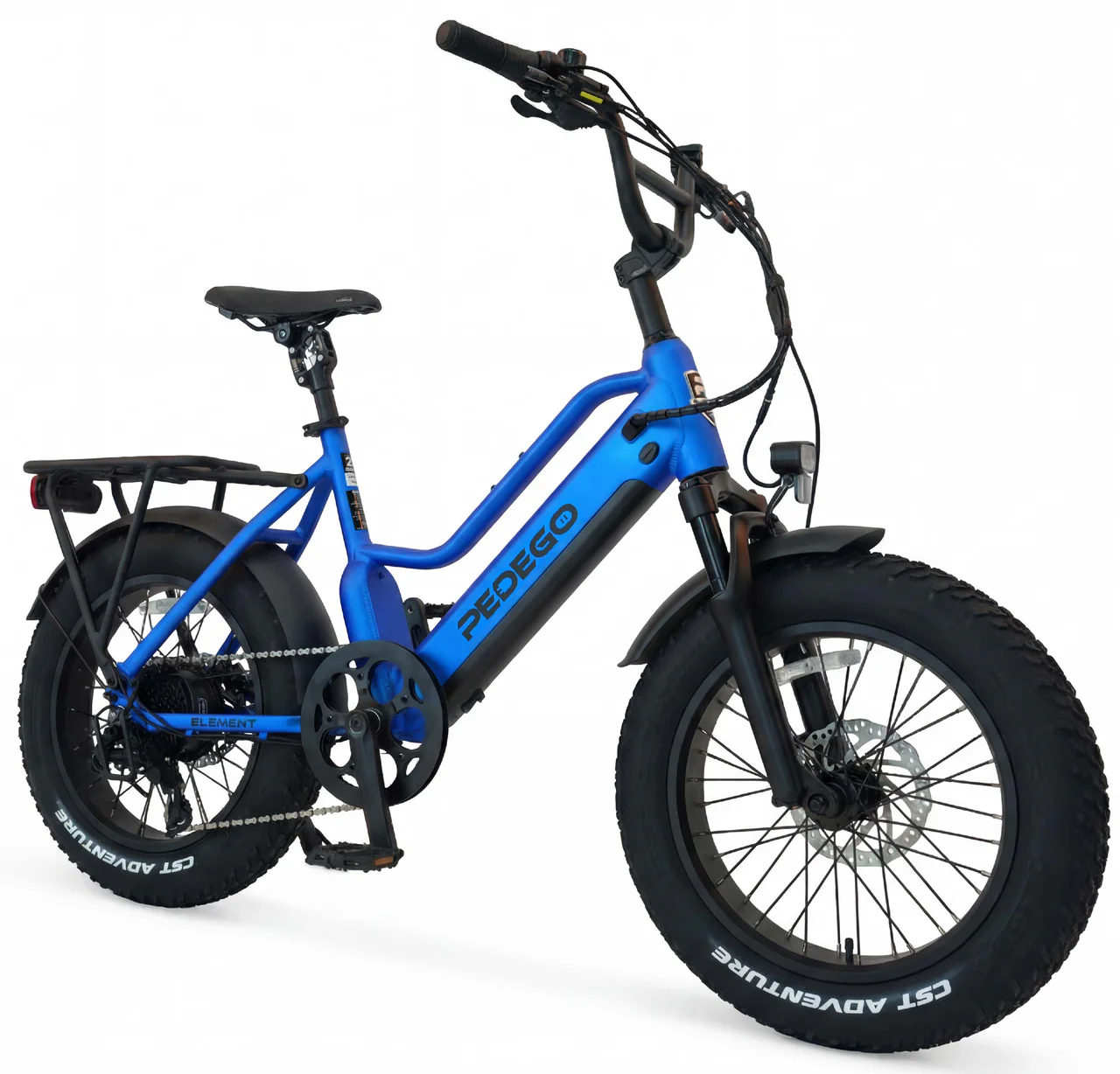

ELEMENT SPECIFICATIONS
Key Features
Fat Tires
20” x 4” fat tires can go anywhere and do anything.
Integrated Battery
A removable battery is integrated into the frame for sporty handling.
Throttle
Twist & go throttle for full power on demand.
Quality Components
Disc brakes, seven gears, sturdy kickstand, heavy-duty spokes, and more.
PedalSense®
5 level of pedal assist and LCD Display with USB charger.
Optional Accessories
Front light, fenders, and rear rack available.
Description
The Element model: The Element is the ultimate value. This is a sporty electric bike with fat tires reaching a full 20 inches around making it an extra stable. It's a versatile bike popular among young-at-heart riders because of its fun style, size, accessible price point and quick release front tire.
General Info
- Model Element: Pro
- Weight Limit 250lbs
- Ideal Use Mountain Biking
- Speed C1 & C2; C3
- Ready Range Up to 90 km
- Rider Height 4'11" to 6'1"
Electronics
- Motor 500 W high torque Rear Hub Motor
- Primary Battery 48V 14Ah UL2271 Certified Battery Pack
- Charger 2A Pedego Charger
- HMI Display Color LCD w/ Ambient Light Sensor & USB-C Charge Port
- Multi-function Switch Turn Signals
- Controller 22A w/ Custom PedalSense Software
- Assist Cruise or Torque Assist
- Pedal Sensor Integrated Bottom Bracket Torque & Cadence Sensor
- Throttle Pedego Twist Throttle
- Headlight Handlebar Mounted Headlight Running Light
- Taillight Radiant Taillight w/ Active Brake Light, Running Light & Turn Signals
- Top Speed Class 1: 32km/h, Class 2: 32km/h Class 3 Ready
Drivetrain
- Crank Arms 170mm Aluminum Alloy, Black
- Chainring 52T w/ Dual Sided Chain Guide, Black
- Pedals Composite Platform w/ Integrated Reflectors
- Derailleur L-TWOO RD-1000-S 10 Speed Rear Derailleur, Short Cage
- Shift Lever L-TWOO T7 SL-1000 10 Speed
- Cassette L-TWOO CS一A7, 11-13-15-17-19-21-24-28-32-36T, Nickel Chrome Plated
- Chain KMC X10 1/2*3/32*118Links
Frame
- Size 20” - One Size
- Colors Matte Black, Matte Blue, Gloss Pearl White
- Material 6061-T6 Aluminum Alloy
- Type Fat Tire Adventure
- Fork Suspension Fork 80mm Travel
- Fenders Aluminum Fenders Front & Rear, Matte Black
- Rear Kickstand Aluminum Alloy w/ Adjustable Composite Foot, Black
Components
- Handlebars Freestyle Low Rise, 31.8mm Clamp, 720mm Width x 176mm Rise
- Grips Pedego Custom Ribbed Rubber Grips, Black
- Stem Aluminum Alloy, 31.8mm Clamp, 35mm Height, 10 Degree Rise
- Headset 28.6/44-56/30, Black
- Saddle Selle Royal - Black Leather Surface
- Seatpost NCX Black Suspension Seatpost, 27.2x350mm
Brakes
- Calipers Tektro HD-E3940, 2 Piston Forged Aluminum Body
- Levers Tektro HD-E3940, 3 Finger Cast Aluminum Lever
- Pads Tektro E11.11 Resin Pads
- Rotors Tektro TR-17 180mm Rotors, 2.3mm Thickness
Wheels
- Front Aluminum 36H
- Rear Aluminum 36H
- Tires CST CMT-07 20*4.0”, Dual Rubber Compound, Black
- Tubes CST 20x4.0" w/ Schrader Valve
Included Accessories
- Rear Rack Matte Black Aluminum Rear Rack w/ Taillight Mount; 55lb / 25kg Max Weight Capacity
- Fenders Front & Rear Fenders
Weight
- Bike 54lb / 24.5kg (w/o Battery)
- Primary Battery 14Ah: 9.59lb / 4.35kg
Warranty
Note:
The Element model qualifies for the Pedego Care warranty. Learn more...
Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego Canada headquarters for assistance.
Warranty Requirements:- Proof of purchase
- Registration at the time of purchase
- 160km tune up by an authorized Pedego dealer
- Annual service by an authorized Pedego dealer
DOWNLOAD FACT SHEET
*Specifications subject to change without notice and not guaranteed. Please note that some colours or components may vary from what is displayed on our website or spec sheet.
Learn More
SUPERCHARGED PERFORMANCE
The Element is famous for its industry-leading range and breathtaking power.
Once you ride a Pedego, everything else is just an e-bike. The real-world performance simply can’t be beat. Visit a Pedego store and try one out to see for yourself.
Fun and exciting to ride (feel like a kid)
Freedom to go anywhere - and back
Best-in-class acceleration & hill-climbing
GO FARTHER, FASTER
Pedego’s whisper quiet motor, lightweight battery, and advanced electronics combine to deliver an unparalleled riding experience. You have the freedom to go farther and faster, and to overcome hills and headwinds with ease.
QUALITY THAT LASTS
Quality components from the ground up
CSPC, ISO, and ASTM compliant
Third-party laboratory testing and certification
QUALITY THAT LASTS
Pedego is a fun company, but we’re serious about quality.
Nobody should have to settle for a cheap electric bike that shows up in a box.
The Element delivers premium Pedego quality with local service for an affordable price.
QUALITY THAT LASTS
Quality components from the ground up
CSPC, ISO, and ASTM Compliant
Third-party laboratory testing and certification
FULLY-LOADED
It’s fully-loaded with user-friendly features that make riding even more fun and practical. A full line of optional accessories is available at your local Pedego store.
KEY FEATURES
Fat Tires
20” x 4” fat tires can go anywhere and do anything.
Integrated Battery
A removable battery is integrated into the frame for sporty handling.
Throttle
Twist and go throttle for full power on demand.
Quality Components
Disc brakes, seven gears, sturdy kickstand, heavy-duty spokes, and more.
PedalSense®
5 levels of pedal assist and LCD Display
Optional Accessories
Front light, fenders, suspension fork and rear rack available.
SIZING GUIDELINES
These are just basic rules of thumb. People’s proportions, flexibility, and preferences can vary greatly. Local stores can also make modifications as needed. Visit your local store for help finding a perfect fit.
20" Fat Tires
One size fits most
