Cycle

LATCH

product-detail-thumb

Easily folds in seconds

product-detail-thumb

5-year "no excuses" warranty

product-detail-thumb

Premium quality & local service

specification-img

LATCH SPECIFICATIONS

Key Features
key-features-image

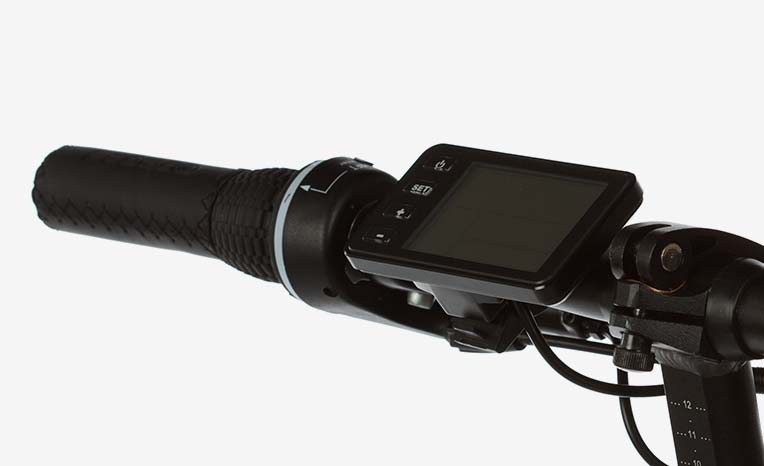

LCD Display

An easy-to-use display features a USB charger for your phone and other devices.

key-features-image

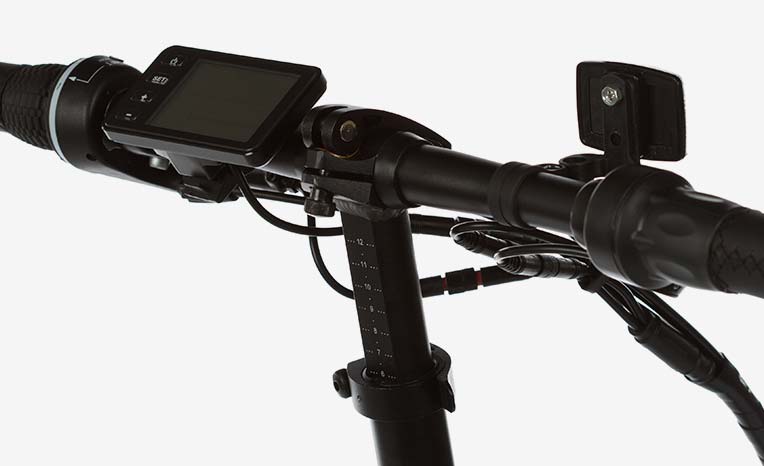

Adjustable Handlebars

Easily adjustable handlebar height and pitch for a perfect fit.

key-features-image

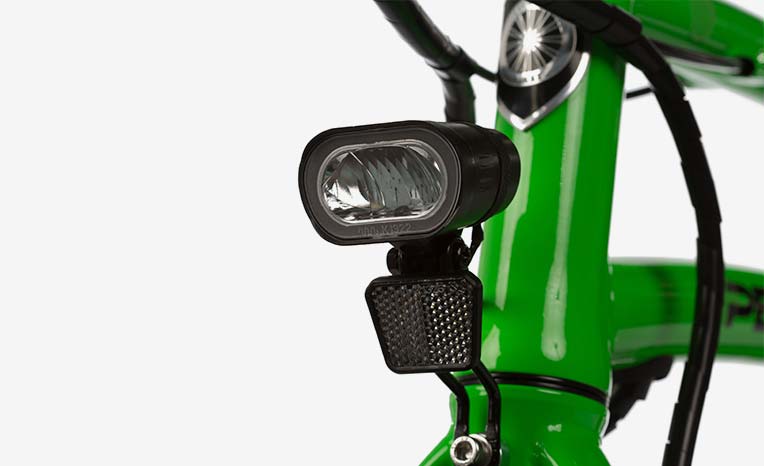

Bright Lights

Integrated front and rear LED lights enhance your safety and convenience.

key-features-image

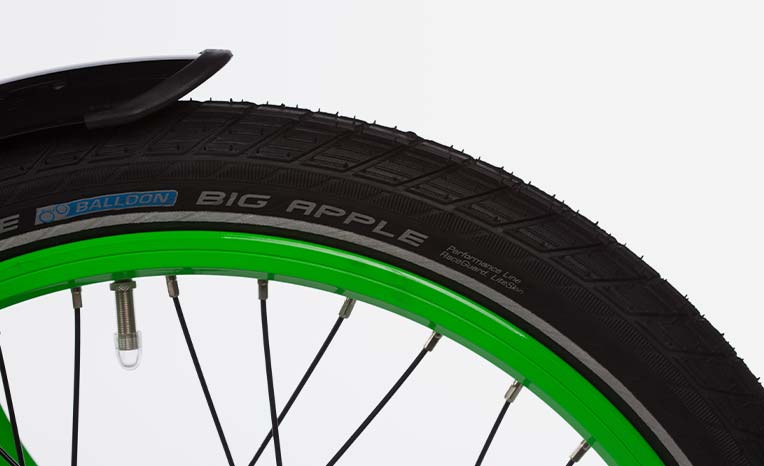

Balloon Tires

Kevlar belted tires with self-sealing tubes help prevent flats.

key-features-image

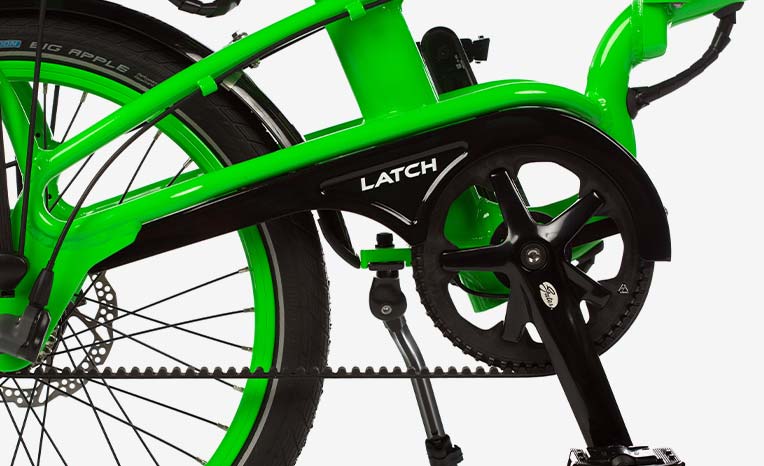

Full Coverage

A full-coverage chain guard and fenders keep you clean and dry.

key-features-image
Folds in Seconds

Easily be folds in about thirty seconds. Even the pedals fold!

key-features-image

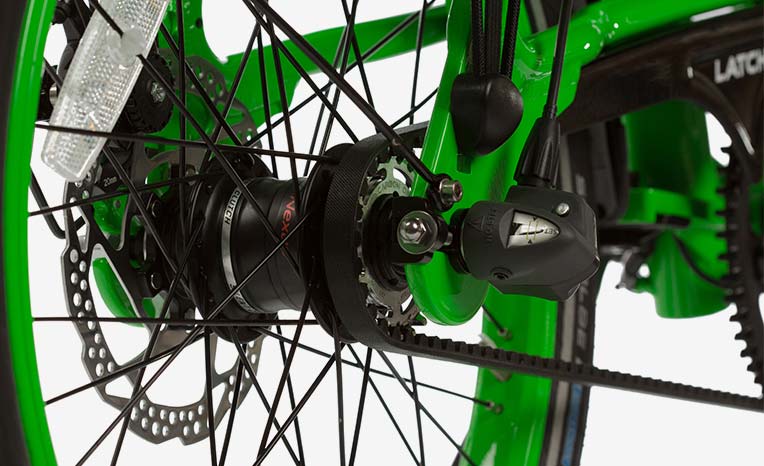

Belt Drive

Carbon belt drive gives you a seamless, quiet ride with no messy chain grease.

key-features-image

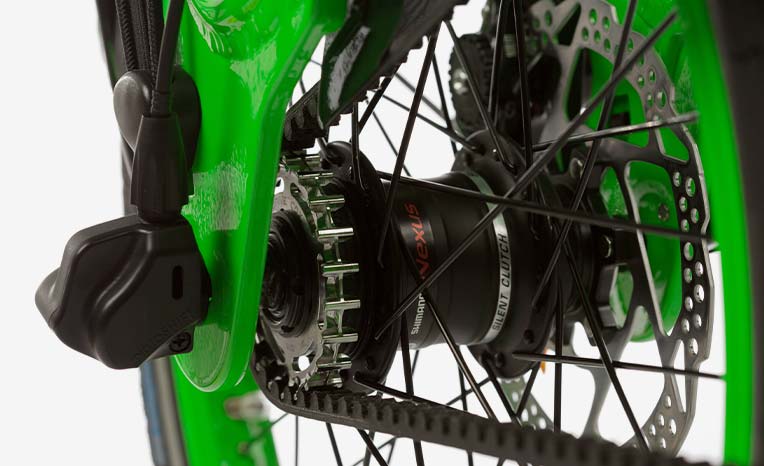

Internally Geared Hub

3-speed hub provides easy pedaling and smooth shifting – even at a complete stop.

Electronics
  • MOTOR

    BLACK 36V BRUSHLESS GEARED FRONT HUB MOTOR; 250 WATT NOMINAL POWER RATING; 30NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION.

  • BATTERY

    36 VOLT 10 OR 15 AMP HOUR WITH PREMIUM LITHIUM-ION 18650 CELLS.

  • CHARGER

    3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.

  • CONTROLLER

    36 VOLT 15 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.

  • THROTTLE

    TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION.

  • PEDALSENSE®

    FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE.

  • DISPLAY

    3.5” BACKLIT LCD SCREEN; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.

  • TOP SPEED

    20 MPH WITH MOTOR ASSISTANCE ONLY.

Drivetrain
  • INTERNAL GEARED HUB

    SHIMANO NEXUS 3 SPEED REAR HUB; ALUMINUM HUB SHELL; CENTER LOCK ROTOR MOUNT SYSTEM; GEAR 1 RATIO: 0.733, GEAR 2 RATIO: 1.000, GEAR 3 RATIO: 1.360, 186% TOTAL GEAR RATIO.

  • REAR SPROCKET

    GATES 22T SUREFIT 3-LOBE STAINLESS STEEL SPROCKET.

  • SHIFTER / BELL CRANK

    MICROSHIFT MN27-3 LEFT-HAND GRIP SHIFTER WITH EASY TO READ GEAR INDICATOR / MICROSHIFT BC-01 BELL CRANK CONNECTOR.

  • BOTTOM BRACKET

    68MM X 116MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY.

  • BELT

    GATES CDN 115T BELT; ENGINEERED POLYMER / CARBON TENSILE CORD.

  • CRANK

    GATES S100 CDN 3 PIECE CRANK WITH 5X130MM 55T SPROCKET; 170MM FORGED ALUMINUM CRANK ARMS.

  • PEDALS

    BLACK WELLGO ALUMINUM FOLDING PEDAL; 9/16” SPINDLE; BALL BEARINGS; INTEGRATED PEDAL REFLECTORS.

Brakes
  • CALIPERS

    AVID BB7S MOUNTAIN MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; DUAL KNOB PAD ADJUSTMENT; TRI-ALIGN CALIPER-POSITIONING SYSTEM; INTEGRATED CABLE STOP SPRING TENSION ADJUSTMENT; STAINLESS STEEL HARDWARE.

  • LEVERS

    TEKTRO ERGONOMIC LEVER WITH RUBBER FINGER PADDING; INTEGRATED LEFT-HAND BELL; INTEGRATED MOTOR CUT-OFF SWITCH FOR MAXIMUM SAFETY.

  • PADS

    AVID ORGANIC WITH STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE.

  • ROTORS

    FRONT: SHIMANO SM-RT56 6 BOLT ROTOR; 160MM DIAMETER; REAR: SHIMANO SM-RT54 CENTER LOCK ROTOR; 160MM DIAMETE

Components
  • FRAME

    6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING.

  • FORK

    20” RIGID HIGH TENSILE STEEL; 1 ⅛” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS.

  • HEADSET

    BLACK ZERO-STACK SEMI-INTEGRATED 1 ⅛” THREADLESS; ZS44/28.6-26TPI | ZS44/30.

  • SEATPOST

    BLACK 31.8MM X 580MM RIGID POST; INTEGRATED SADDLE RAIL CLAMP.

  • SADDLE

    INTERMEDIATE COMFORT SADDLE WITH SOFT FOAM; CENTER CHANNEL CUTOUT; DUAL SIDE FACING PEDEGO LOGO; 275MM L X 185MM W.

  • RIMS

    20” ALEX DM24 E-BIKE RATED DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 13G X 36 HOLE.

  • SPOKES

    BLACK HEAVY-DUTY 13 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES.

  • GRIPS

    BLACK PEDEGO GRIP WITH HAND STITCHING AND FOAM PADDING.

  • HANDLEBAR

    BLACK MTB STYLE FLAT BAR; ALUMINUM ALLOY; 25.4MM STEM CLAMP DIAMETER; 580MM WIDTH.

  • STEM

    BLACK ALUMINUM ALLOY FOLDING STEM; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT-ADJUSTABLE 0-80MM; FOR 1 ⅛” (28.6MM) THREADLESS STEERER TUBE.

  • TIRES

    SCHWALBE BIG APPLE 20” X 2.0” WITH K-GUARD KEVLAR FLAT PROTECTION; SCHRADER VALVE.

Extras
  • LIGHTS

    FRONT: LED WITH ADJUSTABLE MOUNT 40 LUX (200 LUMENS); REAR: LED BUILT INTO BATTERY; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY DISPLAY.

  • KICKSTAND

    BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.

  • TOOL KIT

    CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.

Weight
  • BIKE (NO BATTERY)

    ONE SIZE: 46.4 LB.

  • BATTERY

    36V/15AH: 7.6 LB; 36V/10AH: 7 LB.

Dimensions
One size fits nearly all

4’11” and up

Warranty
Note:

The Latch model qualifies for the Pedego Care warranty. Learn more...

Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego Canada headquarters for assistance.

Warranty Requirements:
  1. Proof of purchase
  2. Registration at the time of purchase
  3. 160km tune up by an authorized Pedego dealer
  4. Annual service by an authorized Pedego dealer
This warranty extends from the date of purchase, is offered only to the original retail purchaser, and is not transferable.

*Specifications subject to change without notice and not guaranteed. Please note that some colours or components may vary from what is displayed on our website or spec sheet.

Learn More
Battery

LIGHTWEIGHT PERFORMANCE

The Latch delivers best-in-class range and power in a compact package

Once you ride a Pedego, everything else is just an e-bike. The real-world performance simply can’t be beat.

Visit a Pedego store and try one out to see for yourself.

supercharge-thumb

Fun and exciting to ride (feel like a kid)

supercharge-thumb

Freedom to go anywhere - and back

supercharge-thumb

Best-in-class acceleration & hill climbing

GO FARTHER, FASTER

Pedego’s whisper quiet motor, lightweight battery, and advanced electronics combine to deliver an unparalleled riding experience. You have the freedom to go farther and faster, and to overcome hills and headwinds with ease.

style-banner-img

style-thumb-img

Ergonomic frame design and adjustable handlebars

style-thumb-img

Soft seat and smooth rolling balloon tires

style-thumb-img

Comfortable fits people of all shapes and sizes

CUSTOM COMFORT

The first thing you notice when you ride a Latch is how comfortable you feel. You’ll swear it was made just for you – because it was!

Soft seat provides cushioning where it matters most.

Kevlar-belted tires help prevent flats and give you a nice, smooth ride

Easily adjustable handlebar height and pitch for a perfect fit

Upright riding position feels surprisingly like a full-sized bike

FULLY-LOADED

The Latch is a complete package with everything you need and more.

It’s fully-loaded with user-friendly features that make riding even more fun and practical.

A full line of optional accessories is available at your local Pedego store.

One size fits nearly all

4’11” and up

you-need-banner

QUALITY THAT LASTS

you-need-thumb

5-year "no excuses" warranty

you-need-thumb

CSPC, ISO, and ASTM compliant

you-need-thumb

Third-party laboratory testing and certification

QUALITY THAT LASTS

Pedego is a fun company, but we’re serious about quality.

Premium quality is more than just a talking point at Pedego, it’s a promise.

It’s a promise that’s backed up by an exclusive five year warranty. That’s quality that lasts!

Key Features

LCD Display

An easy-to-use display features a USB charger for your phone and other devices.

Adjustable Handlebars

Easily adjustable handlebar height and pitch for a perfect fit.

Bright Lights

Integrated front and rear LED lights enhance your safety and convenience.

Balloon Tires

Kevlar belted tires with self-sealing tubes help prevent flats.

Full Coverage

A full-coverage chain guard and fenders keep you clean and dry.

Folds in Seconds

Easily be folds in about thirty seconds. Even the pedals fold!

Belt Drive

Carbon belt drive gives you a seamless, quiet ride with no messy chain grease.

Internally Geared Hub

3-speed hub provides easy pedaling and smooth shifting – even at a complete stop.

Request a Demo

You don’t know, until you know. You need to ride a Pedego today!
