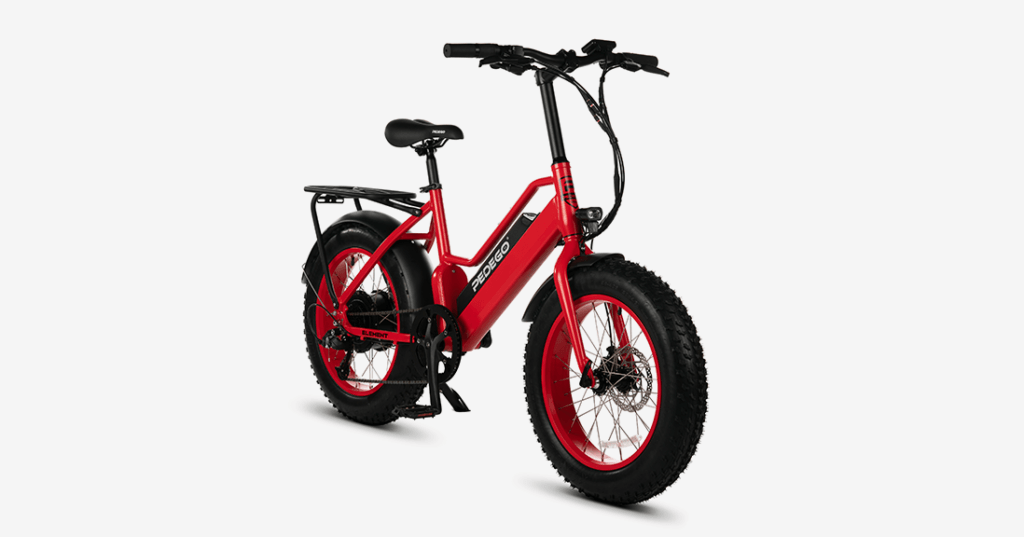

ELEMENT – FAT TIRE ELECTRIC BIKE

The Element model: The Element is the ultimate value. This is a sporty electric bike with fat tires reaching a full 20 inches around making it an extra stable. It's a versatile bike popular among young-at-heart riders because of its fun style, size, accessible price point and quick release front tire.

• MOTOR

  BLACK 48V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE W/ WATERPROOF CONNECTION

  .

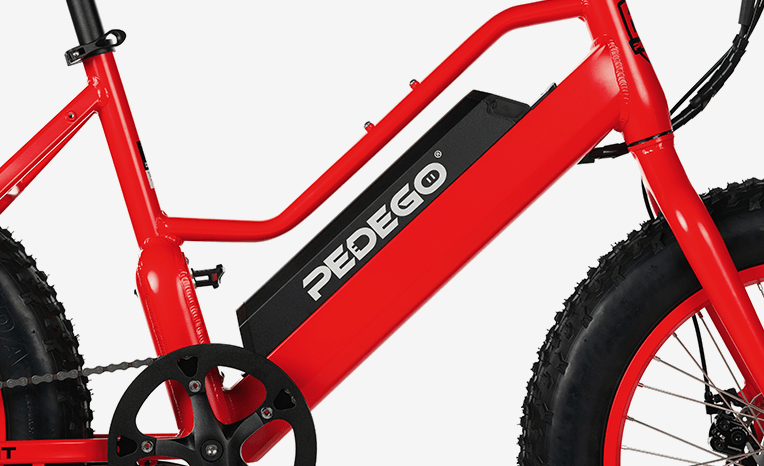

• BATTERY

  48V 10AH W/ PREMIUM LITHIUM ION 18650 CELLS

  .
• CHARGER

  48 VOLT 18 AMP SINE WAVE CONTROLLER W/ CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS

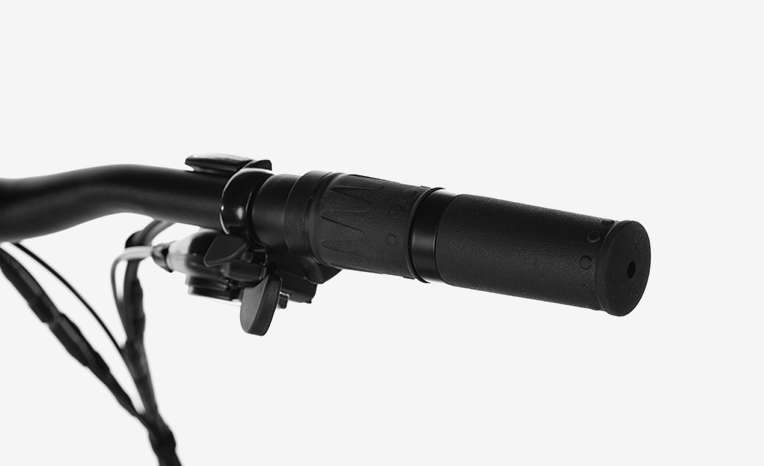

• THROTTLE

  TWIST AND GO THROTTLE W/ THREADED WATERPROOF CONNECTION.

• PEDALSENSE®

  FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST W/ THROTTLE OVERRIDE, AND THROTTLE ONLY MODE.

• TOP SPEED

  32 KM/H WITH MOTOR ASSISTANCE ONLY

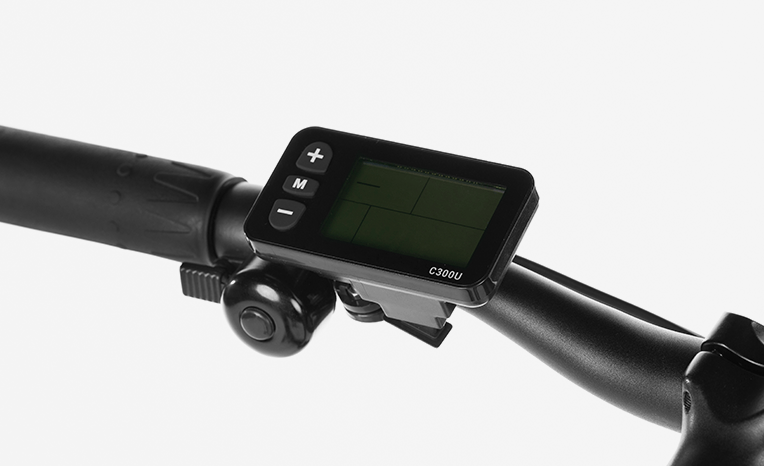

• DISPLAY

  2.5” BACKLIT LCD SCREEN; 3 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.

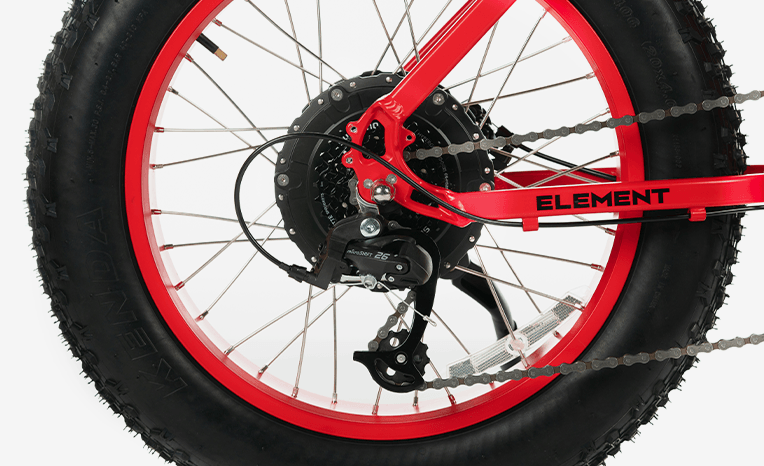

• DERAILLEUR

  MICROSHIFT RD-M26S-7 7-SPEED; RESIN BODY W/ ENGINEERING COMPOSITE PULLEYS

• CASSETTE

  SHIMANO HYPERGLIDE HG20 7 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE

• SHIFTER

  MICROSHIFT TS71-7R RIGHT HAND THUMB-TAP SHIFTER W/ OPTICAL GEAR DISPLAY

• BOTTOM BRACKET

  120MM X 179.5MM SQUARE TAPER SPINDLE W/ SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY

• CHAIN

  KMC Z51EPT 1/2"X3/32” 110 LINKS W/ EPT COATING

• CRANKSET

  BLACK 3 PIECE CRANK W/ 5X130MM 48T 3/32” STEEL CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS

  .
• PEDALS

  WELLGO COMPOSITE PLATFORM PEDAL; 9/16” SPINDLE; INTEGRATED PEDAL REFLECTORS

• CALIPERS

  TEKTRO MD-M280 MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; 5MM HEX INBOARD PAD ADJUSTMENT; INTEGRATED CABLE STOP W/ BARREL ADJUSTER

• LEVERS

  BLACK ERGONOMIC LEVER W/ RUBBER FINGER PADDING; INTEGRATED MOTOR CUT OFF SWITCH FOR MAXIMUM SAFETY

• PADS

  TEKTRO METALLIC PAD W/ STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE

• ROTORS

  TEKTRO TR160-24 STAINLESS STEEL; 160MM DIAMETER

• FRAME

  20” FAT TIRE 6061-T6 ALUMINUM ALLOY; INTEGRATED DOWNTUBE BATTERY MOUNT; SEMI-INTERNAL CABLE ROUTING

  .
• FORK

  20” FAT TIRE W/ ALUMINUM LEGS; 1 ⅛” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS

• HEADSET

  ZERO STACK SEMI-INTEGRATED 1 ⅛” THREADLESS; ZS44/28.6 | ZS44/30

• SEATPOST

  BLACK 30.4MM X 300MM ALUMINIUM ALLOY RIGID SEATPOST; INCLUDES SHIM FOR 27.2MM AFTERMARKET SEATPOST MTB STYLE W/ SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L X 165MM W

  .
• SADDLE

  MTB STYLE W/ SINGLE DENSITY LIGHTWEIGHT FOAM; CHROMOLY RAILS; CENTER CHANNEL RELIEF; 270MM L X 165MM W

• RIMS

  20” X 3” FAT TIRE EXTRA STRENGTH DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 12GR / 13GF X 36 HOLE

• SPOKES

  SILVER HEAVY DUTY 12G REAR / 13G FRONT STAINLESS STEEL SPOKES W/ BRASS NIPPLES

• GRIPS

  BLACK WEAR RESISTANT THERMOPLASTIC RUBBER GRIPS W/ INTEGRATED THROTTLE

• HANDLEBAR

  BLACK MTB RISER; ALUMINUM ALLOY; 31.8MM STEM CLAMP DIAMETER; 30MM RISE; 640MM WIDTH

• STEM

  BLACK ALUMINUM ALLOY; 90MM LENGTH; 31.8MM HANDLEBAR CLAMP DIAMETER; 1 ⅛ (28.6MM) THREADLESS STEERER TUBE CLAMP DIAMETER

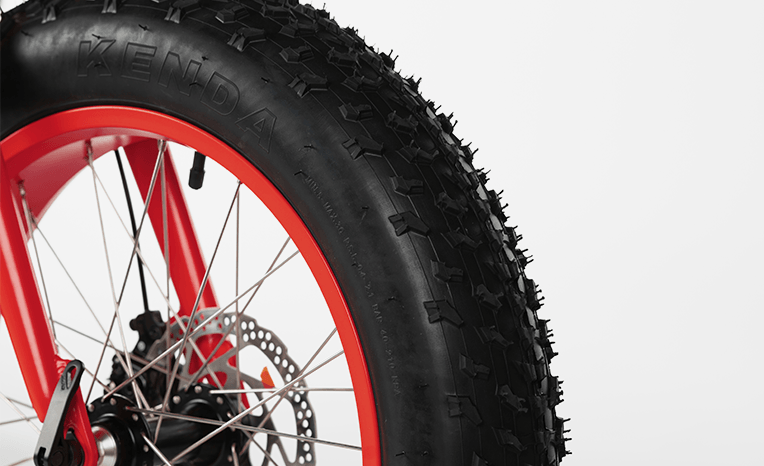

• TIRES

  KENDA BLACK WALL 20” X 4.0”; SINGLE RUBBER COMPOUND; WIRE BEAD; 30 PSI MAX; 20”X 4.0” INNER TUBE, SCHRADER VALVE

• BELL

  BLACK LEFT HAND MINI ALUMINUM BELL

• KICKSTAND

  BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.

• FENDERS

  FENDER SET AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM FENDERS W/ STAINLESS STEEL HARDWARE

• LIGHTS

  HEADLIGHT AVAILABLE AFTERMARKET

• REAR RACK

  REAR RACK AVAILABLE AFTERMARKET; MATTE BLACK ALUMINUM; 25KG MAX WEIGHT CAPACITY

• KICKSTAND

  BLACK ALUMINUM ALLOY REAR KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT

• TOOL KIT

  CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH W/ #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH

Note: The Element model does not qualify for the Pedego Care warranty. Please see the owners manual or click here for details on the limited warranty for the Element.

Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego Canada headquarters for assistance.

Warranty Requirements:

1. Proof of purchase
2. Registration at the time of purchase
3. 160km tune up by an authorized Pedego dealer
4. Annual service by an authorized Pedego dealer

This warranty extends from the date of purchase, is offered only to the original retail purchaser, and is not transferable.
