Cycle

tandem

product-detail-thumb

Double the fun

product-detail-thumb

5-year "no excuses" warranty

product-detail-thumb

Premium quality & local service

specification-img

TANDEM SPECIFICATIONS

Key Features
key-features-image

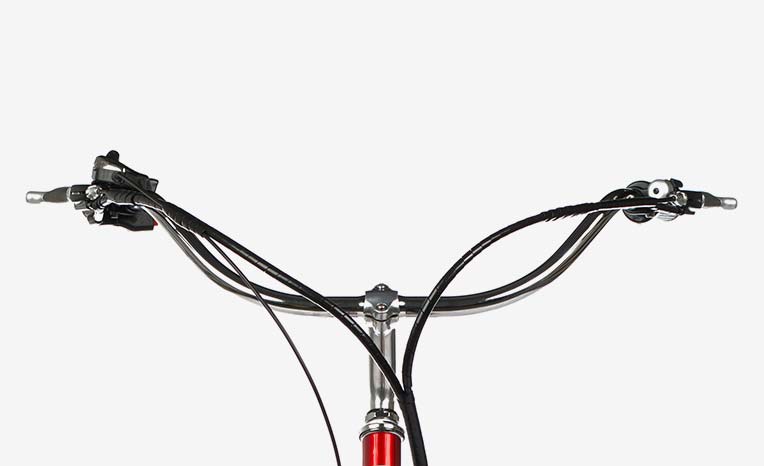

Relaxed Handlebars

Wide, swept back handlebars allow you to sit back and relax.

key-features-image

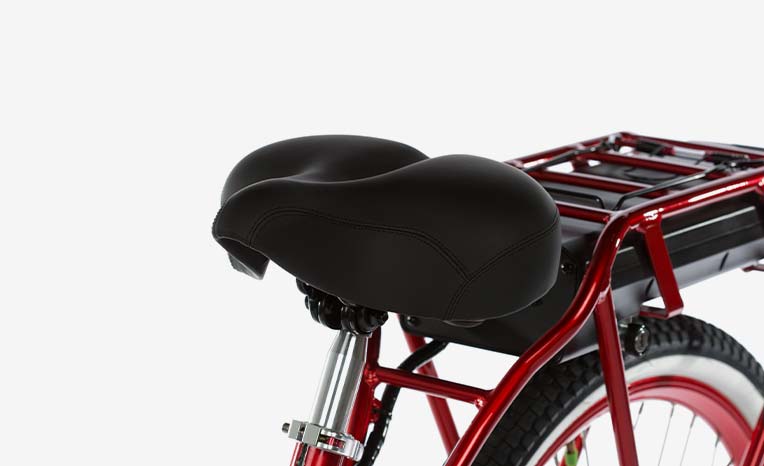

Comfy Seats

Soft saddle provides cushioning where it matters most.

key-features-image

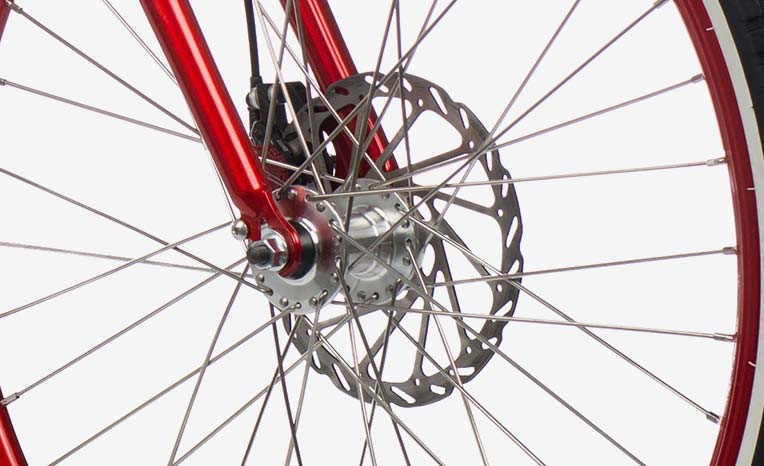

Disc Brakes

Powerful disk brakes can stop on a dime.

key-features-image
Rear Light

Built-in and rear light for your safety and convenience.

key-features-image

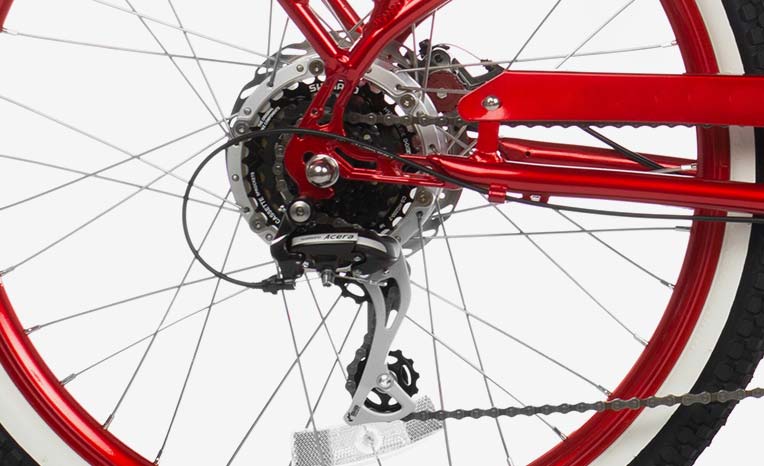

Seven Gears

A premium quality 7-speed drivetrain provides smooth shifting and easy pedaling.

key-features-image

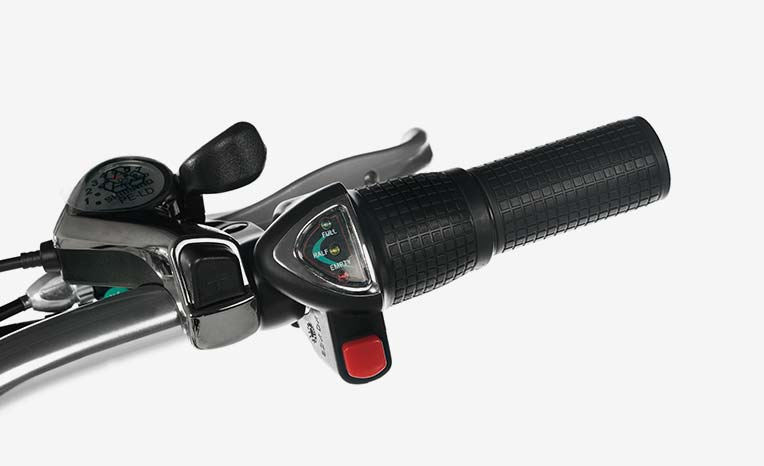

Twist-and-go throttle

Full power on demand with a twist-and-go throttle.

Description

The Tandem model: The Pedego Tandem is the world’s first electric bicycle built for two. Riding is twice as fun with someone you love. Comfortable upright riding position and wide, swept-back handlebars that allow you to sit back and relax. Comes with mag wheels for style and support.

Electronics
  • MOTOR

    SILVER 52V BRUSHLESS GEARED REAR HUB MOTOR; 500 WATT NOMINAL POWER RATING; 45NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION.

  • BATTERY

    52 VOLT 10.5 OR 17.5 AMP HOUR WITH PREMIUM LG, PANASONIC OR SAMSUNG LITHIUM-ION CELLS.

  • CHARGER

    3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.

  • CONTROLLER

    52 VOLT 10.5 OR 17.5 AMP SINE WAVE CONTROLLER WITH CUSTOM SOFTWARE AND WATERPROOF CONNECTIONS.

  • THROTTLE

    TWIST AND GO THROTTLE WITH WATERPROOF CONNECTION; 3 LED BATTERY LEVEL INDICATOR; INTEGRATED PUSH BUTTON POWER SWITCH.

  • TOP SPEED

    32 KM/H WITH MOTOR ASSISTANCE ONLY.

Drivetrain
  • DERAILLEUR

    SHIMANO ACERA RD-M360 7-SPEED, FULL METAL CONSTRUCTION AND TEFLON COATED BUSHINGS.

  • CASSETTE

    SHIMANO HYPERGLIDE HG20 7 SPEED 12-32T; SMOOTH, LIGHT AND RELIABLE SHIFTING PERFORMANCE.

  • SHIFTERS

    SHIMANO FT55 TOURNEY RIGHT HAND THUMB SHIFTER WITH EASY TO READ GEAR DISPLAY; 2400MM LENGTH CABLE.

  • BOTTOM BRACKET

    2 X 68MM X 137MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY.

  • CHAIN

    SHIMANO HG40 1/2”X3/32” WITH INNER PLATE CHAMFERING; FRONT: 146 LINKS; REAR: 128 LINKS.

  • CRANK

    SILVER 3 PIECE CRANK WITH 5X130MM 3/32” 42T CHAINRING; 170MM FORGED ALUMINUM CRANK ARMS; FRONT: SINGLE CHAINRING; REAR: DOUBLE CHAINRING.

  • PEDALS

    SILVER PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS.

Brakes
  • CALIPERS

    TEKTRO 2 PISTON FORGED ALUMINUM HYDRAULIC DISC BRAKE CALIPER; MINERAL OIL BRAKE FLUID.

  • LEVERS

    TEKTRO 3 FINGER LEVER; CAST ALUMINUM WITH MOTOR CUTOFF SWITCH FOR MAXIMUM SAFETY.

  • PADS

    ORGANIC MATERIAL WITH STEEL BACKING PLATE; OFFER SAFETY TOGETHER WITH EXCELLENT PERFORMANCE IN ALL SITUATIONS.

  • ROTORS

    TEKTRO WAVE TYPE STAINLESS STEEL ROTORS;180MM DIAMETER; HIGH HEAT DISPERSION AND HEAT TOLERANCE.

Components
  • FRAME

    6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; EXTERNAL CABLE ROUTING; INTERNAL ELECTRICAL WIRE ROUTING.

Dimensions
Tandem Dimensions

One size fits most

Weight
  • BIKE (NO BATTERY)

    ONE SIZE: 68.8 LB

  • BATTERY

    52V/17.5AH: 9.2 LB; 52V/10.5AH: 8.8 LB.

  • WEIGHT CAPACITY

    400 LB.

Warranty
Note:

The Tandem model qualifies for the Pedego Care warranty. Learn more...

Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego Canada headquarters for assistance.

Warranty Requirements:
  1. Proof of purchase
  2. Registration at the time of purchase
  3. 160km tune up by an authorized Pedego dealer
  4. Annual service by an authorized Pedego dealer
This warranty extends from the date of purchase, is offered only to the original retail purchaser, and is not transferable.
DOWNLOAD PRINTER-FRIENDLY PDF

*Specifications subject to change without notice and not guaranteed. Please note that some colours or components may vary from what is displayed on our website or spec sheet.

Learn More
Battery

SUPERCHARGED PERFORMANCE

The Tandem is famous for its industry-leading range and breathtaking power.

Once you ride a Pedego, everything else is just an e-bike. The real-world performance simply can’t be beat.

Visit a Pedego store and try one out to see for yourself.

supercharge-thumb

Fun and exciting to ride (feel like a kid)

supercharge-thumb

Freedom to go anywhere - and back

supercharge-thumb

Best-in-class acceleration & hill climbing

GO FARTHER, FASTER

Pedego’s whisper quiet motor, lightweight battery, and advanced electronics combine to deliver an unparalleled riding experience. You have the freedom to go farther and faster, and to overcome hills and headwinds with ease.

style-banner-img

style-thumb-img

Cruiser style frame with relaxed handlebars

style-thumb-img

Extra soft seats and smooth rolling balloon tires

style-thumb-img

Comfortably fits people of all shapes and sizes

COMFORT MADE JUST FOR YOU

The most important part of every Pedego is the person riding it.

The first thing you notice when you ride a Tandem is how comfortable you feel.

You’ll swear it was made just for you – because it was!

Extra soft seat provides cushioning where it matters most. (Ask about memory foam upgrade.)

Cruiser frame geometry provides a comfortable, upright riding position

Wide, swept-back handlebars allow you to sit back and relax.

Kevlar-belted tires help prevent flats and give you a nice, smooth ride. (Ask about colour options.)

you-need-banner

you-need-thumb

5-year "no excuses" warranty

you-need-thumb

CSPC, ISO, and ASTM compliant

you-need-thumb

Third-party laboratory testing and certification

QUALITY THAT LASTS

Pedego is a fun company, but we’re serious about quality.

Premium quality is more than just a talking point at Pedego, it’s a promise.

It’s a promise that’s backed up by an exclusive five year warranty. That’s quality that lasts!

KEY FEATURES

Relaxed Handlebars

Wide, swept back handlebars allow you to sit back and relax.

Disc Brakes

Powerful disk brakes can stop on a dime.

Comfy Seat

Soft saddle provides cushioning where it matters most.

Seven Gears

A premium quality 7-speed drivetrain provides smooth shifting and easy pedaling.

Twist-and-go throttle

Full power on demand with a twist-and-go throttle.

FULLY-LOADED

The Tandem is a complete package with everything you need and more.

It’s fully-loaded with user-friendly features that make riding even more fun and practical.

A full line of optional accessories is available at your local Pedego store.

Tandem Dimensions

One size fits most
