Maximum comfort & stability

product-detail-thumb

5-year "no excuses" warranty

product-detail-thumb

Premium quality & local service

specification-img

TRIKE SPECIFICATIONS

Key Features
key-features-image
Custom Storage Container

The extra spacious storage container includes rear fenders that help keep you clean and dry.

key-features-image
Comfy Seat

Wide saddle with a padded backrest that provides extra support.

key-features-image
Adjustable Handlebars

Quick-release handlebar stem allows you to find a perfect fit.

key-features-image

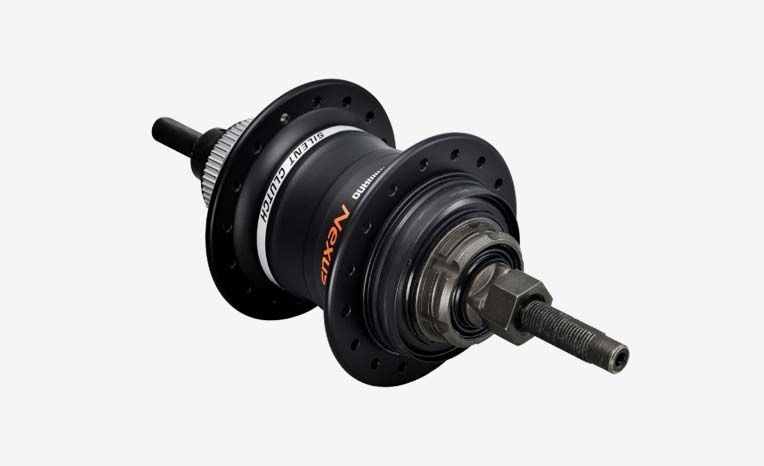

Internally Geared Hub

3-speed hub provides easy pedaling and smooth shifting – even at a complete stop.

key-features-image
PedalSense®

Twist-and-go throttle, 2 levels of pedal assist, and LCD display with USB charger.

key-features-image
Maximum Stability

An extended wheelbase and low center of gravity all work together to set a new standard for safety and control.

key-features-image
Bright Lights

Built-in front and rear lights with an automatic sensor for your safety and convenience.

Description

The Trike model: The Trike is built for optimal comfort and stability. It empowers more people to safely enjoy riding. The Pedego Trike has fewer gears for simplicity and a slower speed than all the other bikes. Adjustable handlebars, a backrest to the seat and a trunk bucket are features giving this bike excellent comfort and function.

Electronics
  • MOTOR

    SILVER 36V BRUSHLESS GEARED HUB MOTOR; 250 WATT NOMINAL POWER RATING; 30NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION.

  • BATTERY

    36 VOLT 11 AMP-HOUR WITH PREMIUM LITHIUM-ION 18650 CELLS; INTEGRATED FOLDING HANDLE FOR EASY REMOVAL; EXTERNAL LED STATE OF CHARGE INDICATOR.

  • CHARGER

    3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.

  • CONTROLLER

    36 VOLT 15 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.

  • THROTTLE

    TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION.

  • PEDALSENSE®

    FREE RIDE MODE (NO POWER), TWO LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE-ONLY MODE.

  • DISPLAY

    3.5” BACKLIT LCD SCREEN; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.

  • THROTTLE

    THROTTLE: 11.3 KM/HR WITH MOTOR ASSISTANCE ONLY. PEDAL-ASSIST: 17.7 KM/PH WITH MOTOR ASSISTANCE ONLY.

Drivetrain
  • INTERNAL GEARED HUB

    SHIMANO NEXUS 3 SPEED REAR HUB; ALUMINUM HUB SHELL; CENTER LOCK ROTOR MOUNT SYSTEM; GEAR 1 RATIO: 0.733, GEAR 2 RATIO: 1.000, GEAR 3 RATIO 1.360, 186% TOTAL GEAR RATIO.

  • REAR SPROCKET

    SHIMANO 22T 3-LOBE STAINLESS STEEL SPROCKET.

  • SHIFTER / BELL CRANK

    MICROSHIFT MN27-3 LEFT-HAND GRIP SHIFTER WITH EASY TO READ GEAR INDICATOR / MICROSHIFT BC-01 BELL CRANK CONNECTOR.

  • BOTTOM BRACKET

    84MM X 147MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY.

  • CHAIN

    KMC Z510RB 1/2”X1/8” WITH RUSTBUSTER TREATMENT; FRONT: 110 LINKS; REAR: 52 LINKS.

  • CRANK

    SILVER 3 PIECE CRANK WITH INTEGRATED TORQUE SENSOR; 5X130MM 39T SPROCKET; 165MM ALUMINUM CRANK ARMS.

  • PEDALS

    SILVER PEDEGO ALUMINUM PLATFORM PEDAL; 9/16” SPINDLE; POLYMER DU BUSHING; INTEGRATED PEDAL REFLECTORS.

Brakes
  • CALIPERS

    AVID BB7S MOUNTAIN MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; DUAL KNOB PAD ADJUSTMENT; TRI-ALIGN CALIPER-POSITIONING SYSTEM; INTEGRATED CABLE STOP SPRING TENSION ADJUSTMENT; STAINLESS STEEL HARDWARE.

  • LEVERS

    ERGONOMIC BRAKE LEVER WITH INTEGRATED PARKING BRAKE; INTEGRATED MOTOR CUT-OFF SWITCH FOR MAXIMUM SAFETY.

  • PADS

    AVID ORGANIC WITH STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE.

  • ROTORS

    FRONT: SHIMANO SM-RT56 6 BOLT ROTOR; 160MM DIAMETER; REAR: SHIMANO SM-RT54 CENTERLOCK ROTOR; 160MM DIAMETER.

Components
  • FRAME

    6061-T6 ALUMINUM ALLOY; INTEGRATED COMPOSITE REAR CARGO BUCKET FOR STORAGE; INTERNAL CABLE AND WIRE ROUTING.

  • FORK

    20” RIGID HIGH TENSILE STEEL; 1 ⅛” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS.

  • HEADSET

    ZERO STACK SEMI-INTEGRATED 1 ⅛” THREADED; ZS44/28.6-26TPI | ZS44/30.

  • SEATPOST

    SILVER 28.6MM X 300MM RIGID SEATPOST.

  • SADDLE

    EXTRA WIDE CRUISER STYLE SADDLE WITH SOFT FOAM AND ADJUSTABLE BACKREST; 265MM L X 280MM W.

  • RIMS

    20” EXTRA STRENGTH DOUBLE WALL LIGHTWEIGHT ALUMINUM ALLOY; 13G X 36 HOLE.

  • SPOKES

    SILVER HEAVY DUTY 13 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES.

  • GRIPS

    PEDEGO BLACK SYNTHETIC LEATHER GRIP WITH HAND STITCHING AND FOAM PADDING.

  • HANDLEBAR

    SILVER HIGH RISE CRUISER STYLE; HI-TEN STEEL; 25.4MM STEM CLAMP DIAMETER; 200MM RISE; 700MM WIDTH.

  • STEM

    SILVER QUICK RELEASE ADJUSTABLE QUILL STYLE; 110MM LENGTH; 0° - 80° ADJUSTABLE ANGLE; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT ADJUSTABLE 0-60MM; FOR 1 ⅛” (28.6MM) THREADED STEERER TUBE.

  • TIRES

    SCHWALBE BIG BEN 20” X 2.15” WITH RACEGUARD KEVLAR FLAT PROTECTION; SLIME INNER TUBE SEALANT; SCHRADER VALVE.

extras
  • CARGO BUCKET

    CUSTOM COMPOSITE CARGO BUCKET; BUCKET OPENING DIMENSIONS: 20” W X 13” L; OVERALL WIDTH: 30”

  • LIGHTS

    FRONT: LED WITH ADJUSTABLE MOUNT 40 LUX (200 LUMENS); REAR: CARGO BUCKET MOUNTED LED; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY DISPLAY.

  • TOOLKIT

    CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.

weight
  • BIKE (NO BATTERY)

    ONE SIZE: 74.6 LB.

  • BATTERY

    36V/11AH: 5 LB.

Dimensions
Trike Dimensions

One size fits nearly all

Warranty
Note:

The Trike model qualifies for the Pedego Care warranty. Learn more...

Please contact an authorized Pedego dealer for warranty claims. If there is not a dealer nearby, please contact Pedego Canada headquarters for assistance.

Warranty Requirements:
  1. Proof of purchase
  2. Registration at the time of purchase
  3. 160km tune up by an authorized Pedego dealer
  4. Annual service by an authorized Pedego dealer
This warranty extends from the date of purchase, is offered only to the original retail purchaser, and is not transferable.
DOWNLOAD PRINTER-FRIENDLY PDF

*Specifications subject to change without notice and not guaranteed. Please note that some colours or components may vary from what is displayed on our website or spec sheet.

Learn more
Battery

MAXIMUM STABILITY

The Pedego Trike is built for optimal comfort and stability. You can ride with supreme confidence knowing that our design team spent years perfecting the stability of the Trike. An extended wheelbase, low center of gravity, and finely tuned computer software all work together to set a new standard for safety and control.
style-banner-img

style-thumb-img

5-year "no excuses" warranty

style-thumb-img

CSPC, ISO, and ASTM compliant

style-thumb-img

Third-party laboratory testing and certification

QUALITY THAT LASTS

Pedego is a fun company, but we’re serious about quality.

Premium quality is more than just a talking point at Pedego, it’s a promise.

It’s a promise that’s backed up by an exclusive five year warranty. That’s quality that lasts!

An extended wheelbase and low centre of gravity provide optimal support and stability.

Wide saddle with a padded backrest that provides extra support.

Comfortable, upright riding position with pedals in front of you.

A removable battery is integrated into the frame for easy maneuvering.

SIZING GUIDE

These are just basic rules of thumb. People’s proportions, flexibility, and preferences can vary greatly. Local stores can also make modifications as needed. Visit your local store for help finding a perfect fit.

Trike Dimensions

One size fits nearly all

FULLY-LOADED

The Trike is a complete package with everything you need and more.

It’s fully-loaded with user-friendly features that make riding even more fun and practical.

A full line of optional accessories is available at your local Pedego store.

Key Features

Smooth Performance

Whisper quiet 250 watt motor and lightweight 36 volt 11 Amp hour battery.

Internally Geared Hub

3-speed hub provides easy pedaling and smooth shifting – even at a complete stop.

PedalSense®

Twist-and-go throttle, 2 levels of pedal assist, and LCD display with USB charger.

Custom Storage Container

The extra spacious storage container includes rear fenders that help keep you clean and dry.

Comfortable Seat

Wide saddle with a padded backrest that provides extra support.

Adjustable Handlebars

Quick-release handlebar stem allows you to find a perfect fit.

Bright Lights

Built in front and rear lights with automatic sensor for your safety and convenience.
